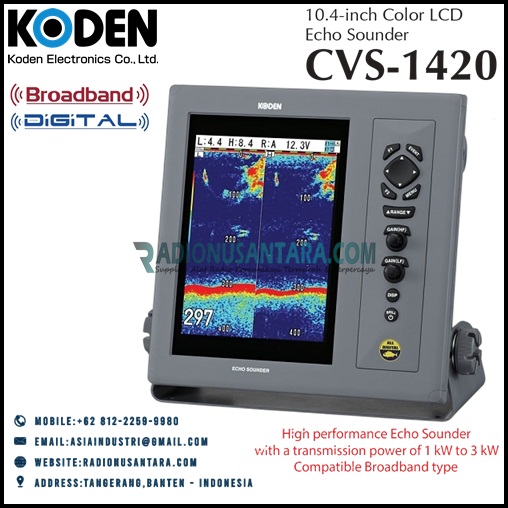

Koden CVS-1420 10.4-Color LCD Echo Sounder
The CTV-1420 is an older model, and newer Koden models (like the Koden CVS-1500/1700 series) may offer digital enhancements. However, it remains a reliable choice for traditional sonar applications.
Features
Transmission power of 1 kW to 3 kW
- High power 3kw output is available. It is suitable for fishing in deep water.
Selectable frequencies
- Compatible with fixed frequency transducer and broadband transducer. Wide range of frequencies can be selected. This allows you to search for fish at the optimal frequency for the species you are targeting.
Koden Digital Filtering (KDF™)
- The Koden Digital Filtering (KDF™) technology has enabled low noise, high resolution and outstanding distance of detection.
Detection area display
- Know exactly the bottom area covered by the low and high frequency sound beams. This can help you target the fish directly under the boat or off to the side.
Store Image
- Stores up to 10 screen images in built-in memory for recall later by a single touch.
Auto Function
- Takes the guesswork out of operating the sounder. Even a novice user can achieve professional results by letting the CVS-1420 pick the optimum settings for such functions as Range, Shift and TVG.
Specifications
| Display unit | CVS-1420 |
| Output method | Single or Alternate |
| Display size and type | 10.4 inch color TFT LCD |
| Display resolution | 640 x 480 pixels (VGA) |
| Basic range | 2.5 to 2000 (m), 10 to 6000 (ft), 2.5 to 1100 (fm / I. fm) (8 ranges can be set to users choice ) |
| Zoom range | 2.5 to 200 (m) 10 to 650 (ft) 2.5 to 150 (fm / l. fm) |
| Shift step | 1m, 10m, 1/8, 1/4 |
| Presentation modes | High frequency, Low frequency, Dual frequency, Zoom image (Bottom lock, Bottom discrimination, Bottom zoom, Zoom, Bottom follow zoom), Nav mode, Vertical split, Horizontal split A-scope can be displayed at all above modes |
| Presentation colors | 64 colors,16 colors, 8 colors, Monochrome |
| Back ground colors | Marine blue, Blue, Black, White, Nighttime color, Other 5 colors |
| Alarms | Bottom, Fish, Temperature*, Speed**, Arrival**, XTE** |
| Image speed | 9 steps & stop |
| Navigational data display | Own ship’s position, Own ship’s course, Own ship’s speed, Waypoint position, Waypoint bearing, Waypoint distance, POB position, POB bearing, POB distance, Cursor position, Cursor bearing, Cursor distance |
| Functions | Interference rejection, Color rejection, Depth maker (VRM), Noise reduction, White line, Draft correct, Water temperature correct, Boat speed correct, Store image (10 images), Fishing Hot Spot, Event memory, Simple plotter, Panel illumination, Power reduction, External trigger, Fish information, Detection area display, Bottom hardness display |
| Auto functions | Range, Shift, TVG, TX Power, White line |
| Language | Chinese1, Chinese2, English, French, Greek, Italian, Japanese, Korean, Spanish, Thai, Danish, Vietnamese |
| Input data format and sentences | NMEA0183 Ver.1.5 / 2.0 / 3.0 |
| GGA, GLL, HDT, MTW, MWV, RMC, VHW, VTG, ZDA | |
| Output data format and sentences | NMEA0183 Ver.2.0 / 3.0 (DBT : Ver.1.5) |
| DBT, DPT, GGA, GLL, HDT, MTW, MWV, RMC, TLL, VHW, VTG, ZDA, Olex, Nobeltec, PKODS,4 | |
| NMEA input / output ports | Total 1 : input and output |
| Power supply | 10.8 to 31.2 VDC |
| Power consumption | 50 W or less (at 24 VDC) |
| Operating temperature | -15°C to +55°C |
| Water Protection | IPX5 |
| Standard equipment | -Display unit with hard cover, Mounting bracket (1 set) -DC power cable, Spare parts, Cable for transducer, Operation manual, Quick reference (1 set) |
| Dimensions and Weight | 364 x 184 x 333 mm / 7.8 kg |
| Datasheet | CVS-1420 |
* Requires data for Temp. sensor
** Requires data from GPS sensor
