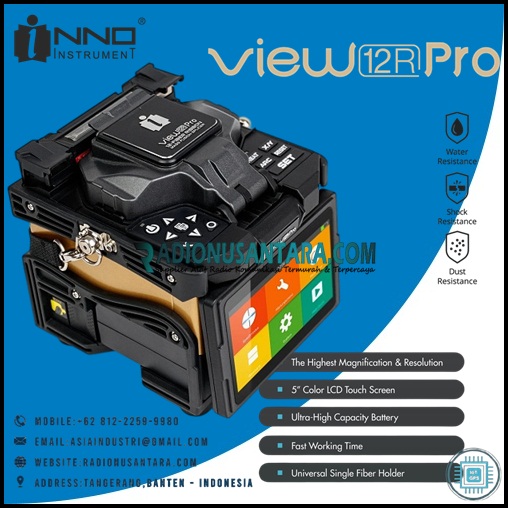

INNO Instrument View12R Pro Seamless Mass Fusion Splicer
VIEW12R PRO, a ribbon splicer with the fully motorized clamp alignment system, is the most powerful and state-of-the-art ribbon splicer in the market.
Its advanced automatic clamp alignment system offers an accurate and dependable ribbon fiber splicing up to 12 fibers with double-tapping (Zoom in & out) and scrolling to the world’s highest magnification of 250x for ribbon splicer.
The VIEW12R PRO provides maximum work efficiency through the fast splicing & heating time, ultra-high battery capacity of 220 splice/heat cycles, and universal holder both for 250μm & 900μm single fiber. The VIEW12R PRO delivers the most reliable work experiences.
Features
- The Highest Magnification & Resolution
- 5” Color LCD Touch Screen
- Ultra-High Capacity Battery
- Fast Working Time
- Universal Single Fiber Holder
Specifications
| Model | View12R Pro |
| Alignment Method | Motorized Clamp Alignment System |
| Number of Fiber | 1 – 12 |
| Applicable Fibers | SM (G.652 & G.657) / MM (G.651) / DS (G 653) / NZDS (G.655) / CS (G.654) / EDF / BIF |
| Coating Diameter | 100μm – 3mm |
| Cladding Diameter | 80 – 150μm |
| Cleave Length | 10 – 13mm |
| Typical Splice Loss | SM: 0.05B / MM: 0.02dB / DS: 0.08dB / NZDS: 0.08dB / G.657: 0.05dB |
| Return Loss | >>60dB |
| Estimated Splice Loss | Available |
| Splice Time | Ribbon fiber: Avg. 15s |
| Single fiber: Avg. 9s | |
| Splice Programs | Max. 128 modes |
| Heating Sleeve | 20 – 60mm |
| Heating Time | Ribbon Sleeve (40mm): 20s |
| Single Sleeve (60mm): 15s | |
| Heating Programs | Max 32 modes |
| Pull Test | 1.96 – 2.25N |
| Dimension | 167 (H) x 143 (W) x 159 (D) mm, including rubber bumper |
| Weight | 2.64kg (with battery) |
| White LED | 3 White LEDs |
| Fiber View | X, Y, XY, X/Y |
| Magnification | to 250x |
| Results Storage | 10,000 Splice data (10,000 Splice image) |
| Power Supply | AC Input 100 – 240V, DC Input 9 – 14V |
| Terminal | USB Type C / Nano SIM |
| Battery Capacity | Typical usage: 220 cycles / Power save usage: 260 cycles |
| Electrode Life | 3000 arcs discharges |
| GPS | Available |
| Operating Condition | Altitude: 0 – 5000m Humidity: 0 – 95%, non-dew Temperature: -10 to 50°C Wind: up to 15m/sec |
| Storage Condition | Humidity: 0 – 95%, non-dew Temperature: -20 to 60°C |
| Resistance Tests | Shock Resistance: 76cm for bottom surface drop Exposure to Dust: 0.1 to 500um diameter aluminium silicate Rain Resistance: 10 mm/h for 10 mins |
| Standard Package | ●Fusion Splicer View12R Pro ●Cleaver V12 ●Fiber Holder FH-12, FH-250 ●SOC Holder SH-SOC-R ●SOC Heater Cover HTS-SOC-01 ●AC Adapter JS-180300 ●Cooling Tray CG-22 ●Electrodes E-50 ●Battery Pack LBT-30 ●Power Cable ACC-25 ●Carrying Case ICC-54 ●Work Tray IWS-06 ●Work Tray Bolt (M6*8) WTB-01 ●USB Cable USB-7P ●USB Cable USB-10P ●V-Groove Cleaning Brush CB-01 ●Thermal Stripper Charger JS-1500 |
| Datasheet | View12R Pro |
