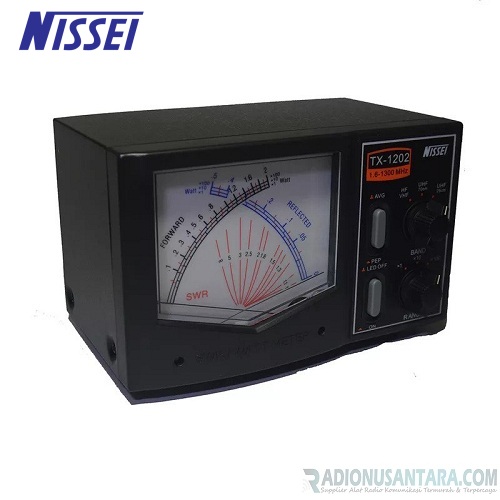

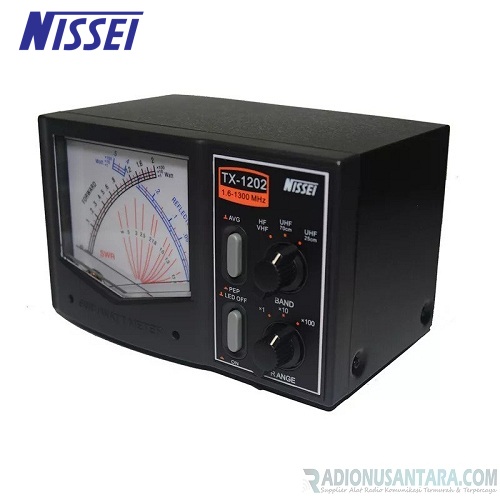

NISSEI TX-1202 SWR / Watt Meter

INTRODUCTION
This SWR/Watt meter is a highly accurate RF meter for measuring Forward Power, Reversed Power, and VSWR by using large(104mm) cross-needle analog meter.

MAIN FEATURES
This wattmeter series offer many innovative features typically not found at this price level.

DC Grounded Antenna connector prevents electrostatic buildup.
True Directional Coupler for increased accuracy over frequency.
Low Bias Schottky Diode Detectors for increased linearity.
Precision, large (104mm) Cross Needle Meter simultaneously displays FWD and REV power with SWR.
Individual Meter Scales for each power range increase reading accuracy.
LED backlighting provides smooth, even illumination.
Three Color Scale for improved readability.
Rugged metal cabinet with speckled black finish and designer style grey injection molded front panel aesthetically complements modern transceivers.
DC Power Cable Included.

SKU: TX-1202 Kategori: SWR/Watt Meter Tag: meter, nissei, swr, tx-1202, watt

Deskripsi
Ulasan (0)

Deskripsi

SPECIFICATIONS

MODEL	TX-27	TX-101A	TX-102	TX-402	TX-502	TX-1202
Frequency Range	26 – 30 MHz	1.6 – 60 MHz	1.6 – 200 MHz	125 – 525 MHz	1.6 – 525 MHz	1.6 – 1300 MHz
Center Calibrated	27 MHz	28.5 MHz	28.5/145 MHz	145/435 MHz	28.5/145/435 MHz	28.5/145/435/1260 MHz
Power Range	0 – 2KW		0 – 200W			0 – 200W (Note)
Power Scale	20/200/2KW		2/20/200W			2/20/200W (Note)
Maximum Power	2KW		200W			200W (Note)
Accuracy	± 10% of Full Scale or better					(Note:20W/1260 MHz)
Insertion Loss	Less than 1.2 : 1
Min. Power	1W
Testing Function	Power, SWR, PEP	Power, SWR, Active PEP	Power, SWR, PEP
Impedance	50 ohm

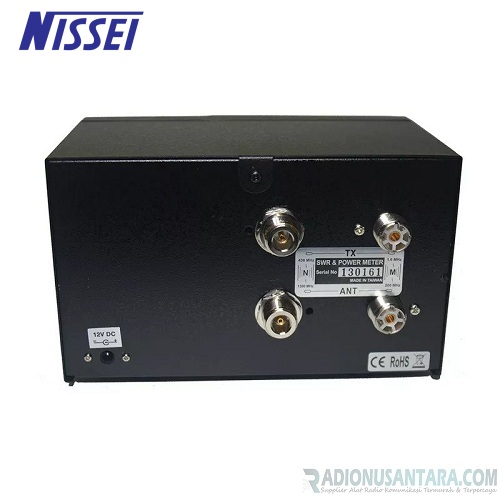

Connectors	M type			M type (For UHF, N type optioned)		S1 : M, S2 : N
Input Power	9-14 VDC 200 mA maximum
Dimension	184(W) x 118(H) x 131(D) mm
Weight	840g	900g	910g	920g	1070g	1100g
