Deskripsi
Specifications
| General | |
| Frequency Range | 136-174MHz |
| Channel Capacity | 200 |
| Channel Spacing | 5/6.25/8.33/10/12.5/15/20/25/30/50KHz |
| Frequency Stability | 2.5ppm |
| Operating Temperature | -20°C to + 60°C |
| Operating Voltage | 13.8V DC ± 15% |
| Dimension (H x W x D) | 145mm x 190mm x 47mm |
| Weight (with bracket) | 1200g |
| Receiver | |
| Reference Sensitivity | 0.2μV @ 12dB SINAD |
| Operating Bandwidth | 0dB @ 12.5KHz /70dB @ 25KHz |
| Adjacent Channel Selectivity | 60dB @ 12.5KHz 70dB @ 25KHz |
| Inter-Modulation Rejection | ≥60dB/ ≥65dB |
| Spurious Response Rejection | ≥70dB |
| Rated Audio Response | +1-+3dB |
| Rated Audio Distortion | <5% |
| FM Hum & Noise | ≥40dB @ 25KHz /≥45KHz @ 12.5KHz |
| Transmitter | |
| RF Power | 60W/25W/10W (VHF) |
| Frequency Modulation | 11kΦF3E / 16kΦF3E |
| Modulation Distortion | <5% |
| FM Noise | ≥36dB @ 25KHz /≥40KHz @ 12.5KHz |
| Adjacent Channel Power | ≥60dB @ 12.5KHz /≥70KHz @ 25KHz |
| Audio Response | +1-+3dB |
| Audio Distortion | <5% |

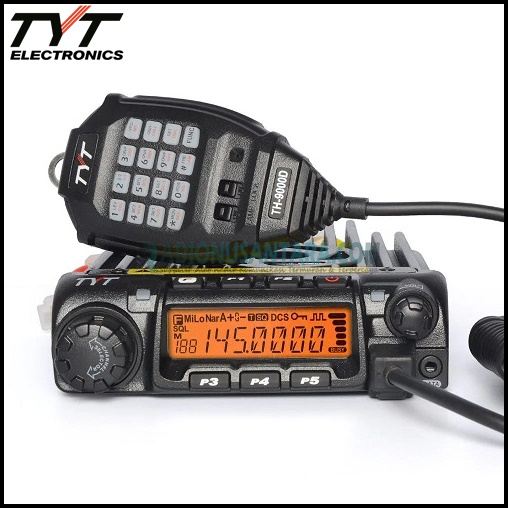

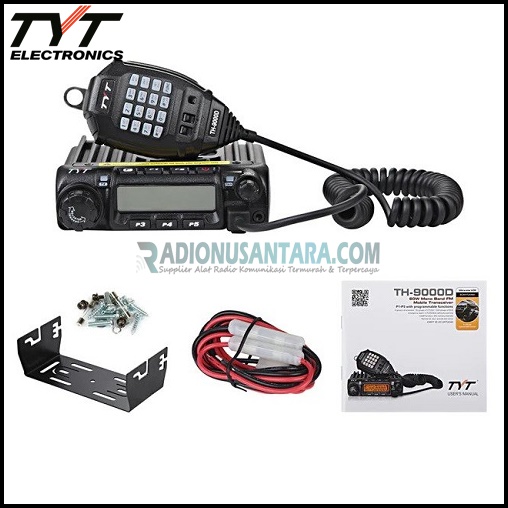

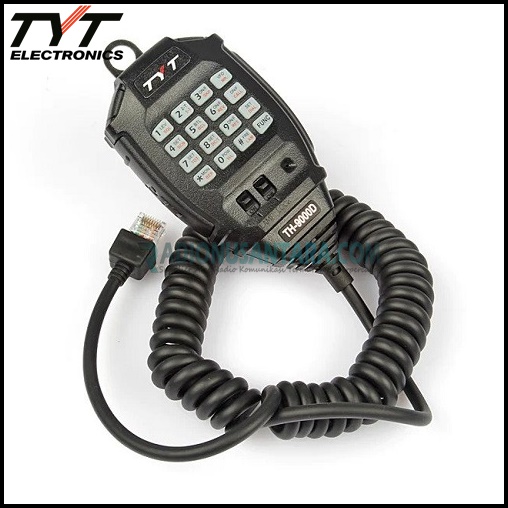

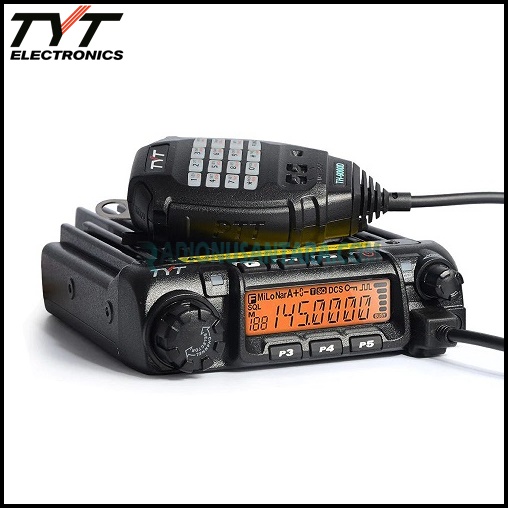

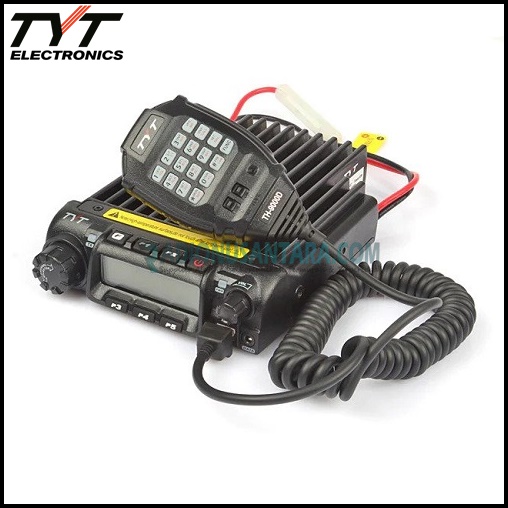

| Package Content | • 1 x TYT TH-9000D 136-174MHz Mobile Transceiver • 1 x Handheld Microphone • 1 x Power Cable • 1 x Screws and Accessories • 1 x User’s Manual • 1 x Fixed Bracket |
