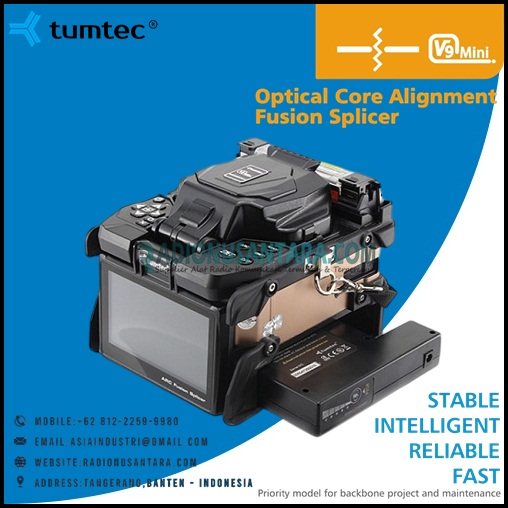

TUMTEC V9 Mini Optical Core Alignment Fusion Splicer
The TUMTEC V9 Mini Optical Core Alignment Fusion Splicer is a high-performance, compact tool designed for efficient and accurate optical fiber splicing. With advanced core alignment technology, this mini fusion splicer is perfect for field technicians who require precision, speed and portability in fiber optic installation and maintenance tasks. The TUMTEC V9 Mini ensures seamless connections and low splice loss, making it ideal for a wide range of applications, including FTTx, data centers, and telecom networks.
Features
- DACAS – Digital Analysis Core Alignment Systems
- German CNC technique and integrated fiber-adjust frame, which make performance much stable
- Fiber type identification function
- V-groove precise alignment, high quality and low loss
- Auto-splicing mode, using friendly design
- Dust-proof, water-proof, high temperature resistance, adapting to various altitude and harsh environment
- 3” high resolution color LCD touch screen, 480X magnification, visible clearly with bare eyes
- Packed with detachable 5200mAh battery, more than 250 times of splicing and heating
- 3 high-power white LEDs and illuminated keypad simplifies your work at night
- Detachable multifunction fixture, suitable for various fiber type
- Built-in Japanese components and Korean chipset
- Optical imaging system ranks No. 1 in the world
Specifications
| Equipment Parameters | |
| Model | V9 Mini |
| Dimension | 135W x 160L x 135H (excluding rubber bumper) / 140W x 165L x 135H (including rubber bumper) |
| Weight | 2250g (with battery) / 1870g (without battery) |
| Number of Fiber | Single |
| Applicable Fibers | SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
| Compatible Fiber/Cable | 0.25 – 3.0mm/Indoor Cable |
| Cleaved Length | Diameter : 0.125 – 1mm/Cleave Length : 8 – 16mm |
| Cladding Diameter | 80 – 150µm |
| Splicing Mode | Pre-set 41 splicing modes, max 100 modes |
| Heating Mode | Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes |
| Typical Splice Loss | SM : 0.02dB / MM : 0.01dB / DS : 0.04dB / NZDS : 0.04dB / G.657 : 0.02dB (ITU-T Standard) |
| Return Loss | ≥ 60dB |
| Lighting | 3 White LEDs |
| Splicing Time | Quick mode : 6s |
| Estimated Splice Loss | Available |
| Heating Sleeve Length | 20 – 60 mm |
| Heating Time | Quick heating time : 13s, typical heating time : 30s |
| Results Storage | 20000 latest records & 200 images |
| Tension Test | 1.96 – 2.25N |
| Operating Condition | Operating Altitude : 0 – 5000m above sea level, 0 – 95% relative humidity, -10 to 50°C, max wind 15m/s |
| Storage Condition | 0 – 95% relative humidity, -40 to 80°C |
| Display | 90° bi-directional view, 4.3” Color High Resolution Display |
| Fiber View & Magnification | X, Y, XY, X/Y : 480X Magnification |
| Power Supply | AC Input 100 – 240V, DC Input 12 – 15V |
| No. of Splice/Heating with Battery | 5200mAh Battery Capacity, Typical 250 times (Splice + Heat) |
| Operating Methods | Button/Touch Screen |
| Automatic Calibration | Automatic ARC Calibration by air pressure and temperature |
| Electrode Life | 5000 ARCs |
| Terminal | Mini USB 2.0 |
| Standard Accessories | • Fusion Splicer V9 Mini (1 set) • Fiber Cleaver (1 set) • Battery (1 set) • Power Adapter (1 set) • AC Power Line (1 set) • Back-Up Electrode (1 set) • Cooling Tray (1 set) • Carrying Case (1 set) • Carrying Strap (1 set) • User Manual (1 set) • Splicing Test Report (1 set) • Fiber Stripper (1 set) • Drop Cable Stripper (1 set) • Alcohol Bottle (1 set) |
