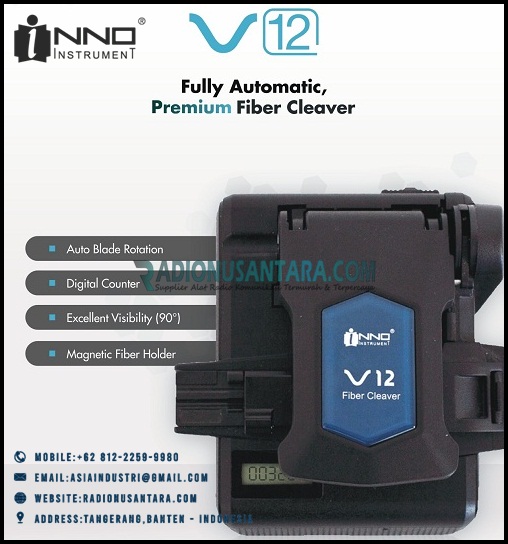

INNO Instrument V12 Fully Automatic Premium Fiber Cleaver
INNO Instrument V12 Precision Desktop Cleaver equipped with an alloy steel blade is a fully automatic cleaver with self-activating scoring mechanism, blade rotation after each cleave, up to 2,500 cleaves per position, and blade lifespan of over 60,000 cleaves. V12 features a built-in automatic fiber shard collector and a magnetic universal holder (clamp). It has been designed to cover a wide range of different cables, including 250μm & 900μm fiber cable, flat cable, ribbon fiber, and jumper cable. INNO Instrument V12 cleaver set includes a cleaning brush and a hexagonal wrench for blade replacement. To provide better visibility and ease of use, the lid opens up at a 90-degree angle.
Specifications
| Model | V12 |
| Type | Single Fiber and Ribbon FIber |
| Cladding Diameter | 125µm |
| Cleaved Length | Single Fiber: 5mm – 24mm (Coating diameter ≤ 250µm), 10 – 20mm (Coating diameter ≥ 250µm Ribbon (Multi) Fiber: 10mm |
| Applicable Fiber Cable | Single Fiber: 250µm to 900µm, 2mm – 3mm and Drop Cable Ribbon (Multi) Fiber: 2 – 16 Ribbon Fibers |
| Typical Cleaved Angle | 0.5° |
| Typical Blade Life | Total 60.000 fiber cleaves (2.500 cleaves per each point, total 24 points) |
| Holder | Universal Holder, Replaceable Holder |
| Dimension | 106.5 (W) x 55 (H) x 103.5 (D) mm |
| Weight | 319 gr |
| Operation Condition | Temperature: -10 to 50°C / Humidity: 0 to 95% RH (non-dew) |
| Storage Condition | Temperature: -40 to 80°C / Humidity: 0 to 95% RH (non-dew) |
| Battery | Coin Type Lithium Battery CR |
| Package | -Cleaver (V12) -Cleaver Case (CC-05) -Brush (CB-02) -Hexagonal Wrench (CW-03) -Flat-head Screwdriver (CW-04) -Operation Manual -Quality Report |
