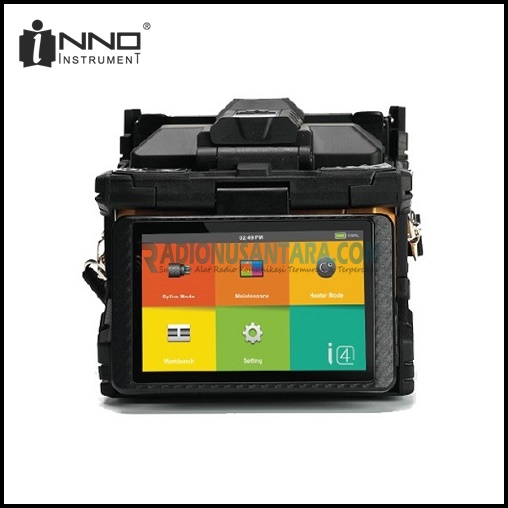

INNO Instrument i4 Active V-Groove Cladding Alignment Fusion Splicer
INNO i4 Fusion Splicer redefines portability and efficiency in the field of fiber splicing. As a compact splicer, it is equipped with active V-Groove Cladding Alignment technology, ensuring efficient fiber alignment. With an impressive splicing time of just 4 seconds and a warm-up time of 13 seconds, the i4 stands out for its speed. It is equipped with a powerful 3500mAh battery, which is capable of lasting up to 200 cycles. The device features a 4.3-inch color LCD display with a full touchscreen interface, offering an intuitive and easy-to-use experience. The dimensions are carefully designed for mobility, measuring 132mm in depth, 137mm in width, and 130mm in height, and weighing only 1.384 kg, making it an ideal choice for technicians on the go.
Features
- Active V-Groove Cladding Alignment
- Fast Splicing 4s and Heating Time 13s
- 4.3″ Color Display
- Full Touch Screen
- Battery Capacity 3500mAh
- Operation Cycle – 200 cycles (Splicing + Heating)
- 10,000 Splice Data and 10,000 Splice Image
Specifications
General |
|
Model | i4 |
Alignment Method | Active V-Groove Clad Alignment |
Number of Fibers | Single |
Applicable Fibers | SM (ITU-T G.652 & T G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) |
Cladding Diameter | 100µm – 3mm |
Coating Diameter | 80 – 150µm |
Cleave Length | 5 – 16mm |
Typical Splice Loss | SM: 0.03dB / MM: 0.01dB / DS: 0.05dB / NZDS: 0.05dB / G.657: 0.03dB |
Return Loss | >>60dB |
Splice Time | Quick mode: AVG. 4 sec. / SM Auto mode: AVG. 5 sec. |
Splice Programs | Max 128 modes |
Automatic Calibration | Automatic ARC Calibration by Air Pressure & Temperature |
Electrode Life Span | 6000 ARC Discharge |
Heating Programs | Max. 32 modes |
Heating Time | 13 sec (45mm, 60mm slim) |
Protection Sleeve | 20mm – 60mm |
Data Output | USB-C |
Splice Memory | 10.000 Splice Data / 10.000 Splice Image |
Battery | Battery Capacity: 3500mAh / Operation Cycle: 200 cycles (Splicing + Heating) |
Monitor | 4.3” Color LCD Display, Full Touch Screen |
Magnification | x130, x320 |
Pull Test | 1.96 – 2.25N |
*Splicing Time: Measured from the time of fibers entering the screen until the estimated loss is displayed. Splicing time can vary depending on the calibration status. *Battery: Measured as 1-minute cycle of splicing and heating. Measured in Power Save Mode. |
|
Dimensions and Weight |
Height: 130mm Width: 137mm Depth: 132mm Weight: 1.384kg (with battery), 1.164 (without battery) |
Environmental Condition and Test |
|
Operating Conditions | Altitude: 0 – 5000m Humidity: 0 – 95%, non-dew Temperature: -10 to 50°C Wind: up to 15m/sec |
Storage Conditions | Humidity: 0 – 95%, non-dew Temperature: -20 to 60°C |
Resistance Test | Shock Resistance: 76cm for bottom surface drop Exposure to Dust: 0.1 to 500um diameter aluminium silicate (IP5X) Rain Resistance: 10 mm/h for 10mins (IPx2) |
Datasheet | i4 Catalog |
