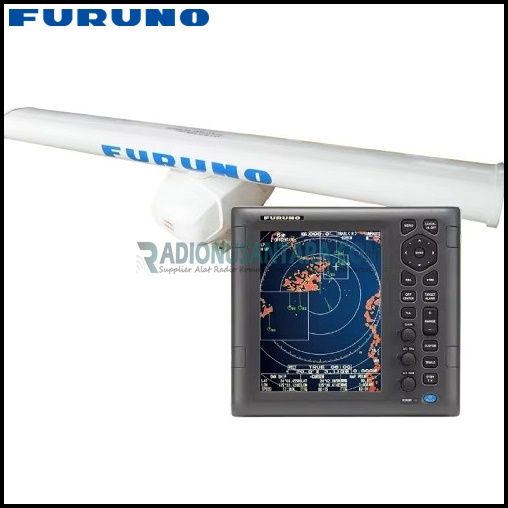

FURUNO MODEL-1945 Multi-Color LCD Radar
Bringing a New Level of Quality, Operability and Reliability into Marine Radar
Furuno’s new Radar series, MODEL 1945 is a high contrast 10.4” LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats.
These new Radar offer crystal clear target presentation with automatic Gain, Sea and Rain controls to deliver a noise-free Radar presentation. It features superb detection of even small targets both and long ranges. It also incorporates new display modes (ex. True View Mode, Full Screen Mode) which will assist with safe navigation. The MODEL 1945 allows you to see far away objects before they are visible and allows you to see in the dark, fog or during periods of obstructed visibility in any weather condition.
Features
- Easy-to-install 10.4” portrait color LCD (350 cd) display
- Bonded LCD provides clear view in all weather conditions
- Stable AIS/Target Tracking with zoom display function
- Full Screen Mode lets operator’s obverse a wider range around the vessel
- Enhanced auto tuning/gain/anti-clutter controls
- Echoes in yellow, green, orange or multiple colors
Specifications
| ANTENNA RADIATOR | ||
| Type | Slotted wave guide array | |
| Length and Rotation Speed | Open 120 cm (XN12A) 24 or 48 RPM | |
| Wind Load | 24 RPM: 100 kn relative wind 48 RPM: 70 kn relative wind |
|
| Beam Width | Horizontal 1.9°, Vertical 22° | |
| RF TRANSCEIVER | ||
| Frequency | 9410 ±30 MHz (X-band) | |
| Output Power | 6 kW | |
| DISPLAY | ||
| Display Type | 10.4” color LCD | |
| Pixel Number | 640 (H) x 480 (V), VGA | |
| Effective Diameter | 158 mm | |
| Display Modes | Head-up, Course-up*, North-up*, True-view*, True-motion** | |
| Range Units | nm, sm, km | |
| Range Scale and Range Ring Interval (nm) | Range | 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 1.6, 2, 3, 3.2, 4, 6, 8, 12, 16, 24, 32, 36, 48, 64 |
| Ring | 1/32, 1/16, 1/8, 1/4, 1/2, 0.8, 1, 2, 3, 4, 6, 8, 12, 16 | |
| Minimum Range | 25 m | |
| Range Discrimination | 25 m | |
| Echo Trial | Type | True or relative trails |
| Trail Length | 15, 30 sec., 1, 3, 6, 15, 30 min., or continuous Trail | |
| Trail Width | Narrow, Normal | |
| Target Tracking (Required optional board ARP-11) | Acquisition | Auto, Manual |
| Number of Targets | 10 targets max. | |
| AIS Function (Data Input from AIS is required) | Symbols | Sleeping, Activated, Dangerous, Selected, Lost targets |
| Number of Targets | 100 targets max. | |
| * Heading data required ** Heading and position data required |
||
| INTERFACE | ||
| Input | AD-10 or IEC 61162 NMEA0183 Ver. 1.5/2.0/3.0 | |
| Output | IEC 61162 NMEA0183 Ver. 1.5/2.0/3.0 | |
| ENVIRONMENT | ||
| Temperature | Antenna Unit: -25°C to +55°C (-13°F to +131°F) Display Unit: -15°C to +55°C (5°F to +131°F) |
|
| Waterproofing | Antenna Unit: IEC60529 IP26 Display Unit: IEC60529 IP55 |
|
| POWER SUPPLY | 12 – 24V DC, 7.3 – 3.5A for 24 rpm, 8.8 – 4.1A for 48 rpm | |
| DIMENSION | Antenna Unit: 1255 x 438 x 445 mm Display Unit: 323 x 129 x 308 mm |
|
| WEIGHT | Antenna Unit: 25 kg Display Unit: 5.4 kg |
|
| EQUIPMENT LIST | 1. Display Unit 2. Antenna Unit (Specify when ordering) 3. Antenna Cable 10/15/20 or 30 m 4. Power Cable 5 m 5. Spare Parts & Installation Materials |
|
| Datasheet | MODEL1835/1935/1945 EN | |
