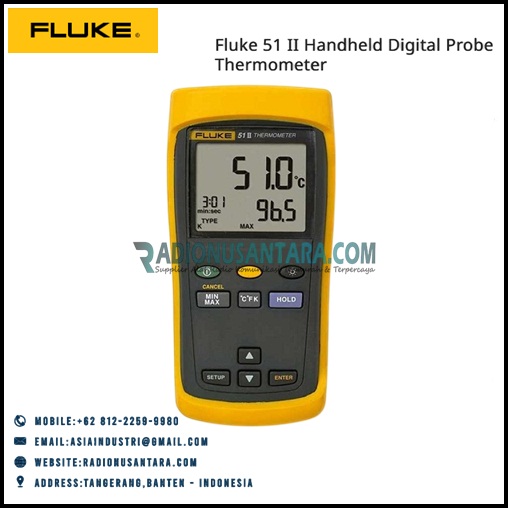

Fluke 51 II Handheld Digital Probe Thermometer

Deskripsi

Fluke 51 II Handheld Digital Probe Thermometer



The Fluke 51 II single input digital thermometer delivers fast response with laboratory accuracy (0.05% + 0.3°C). You can use the 51 II to measure contact temperature on motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, or E-type thermocouple temperature sensors. The user friendly-front panel and large, backlit display make it easy to view results. And the sleep mode feature preserves battery life to give you a typical thousand hours of operation.

Other Useful Features:

• Easy-to-access battery door that allows replacing the battery without breaking the calibration seal
• Comes with splash- and dust-resistant case protected by an impact-absorbing holster and a three-year warranty
• Powered by three, standard AA batteries -30-
• Includes an electronic offset function that compensates for thermocouple errors to maximize overall accuracy
• Handles temperatures up to 900°C (1600°F)
• Provides a user-friendly front panel that is easy to set up and operate
• Offers sleep mode to increase battery life; 1000-hour battery life typical
• Offers optional ToolPak accessory to hang the thermometer from any metal object (with the rare earth magnet) or secure around a pipe (with hook-and-loop straps) for hands-free operation



Features

• Single Input digital thermometer for lab, QA, process calibration, food safety and HVAC
• Measures J, K, T, and E-type thermocouples
• Presents results in °C, °F, or Kelvin (K) on a large backlit display
• Includes a relative time clock on MIN, MAX, and AVG to provide a time reference for major events



Specifications

Temperature accuracy	Above -100°C	J, K, T, E, and N-type: ±[0.05% + 0.3°C]1
		R and S-type: ±[0.05% + 0.4°C]1
	Below -100°C	J, K, E, and N-types: ±[0.20% + 0.3°C]1
		T-type: ±[0.50% + 0.3°C]
Temperature	J-type	-210°C to 1200°C.
	K-type	-200°C to 1372°C.
	T-type	-250°C to 400°C.
	E-type	-150°C to 1000°C.
	N-type	-200°C to 1300°C1
	R and S-type	0°C to 1767°C1
Temperature scale	ITS-90.
Applicable standards	NIST-175.
Display resolution	0.1°C, 0.1 K < 1000.
	1°C, 1 K ≥ 1000.
1. Only the Fluke Models 53 II B and 54 II Bthermometers are capable of measuring N, R, and S-type thermocouples.
Environmental
Operating temperature	-10°C to 50°C.
Storage temperature	-40°C to 60°C.
Humidity (without condensation)	0% to 90%; 0°C to 35°C.
	0% to 70%; 0°C to 50°C.
Safety
Overvoltage category	CSA C22.2 No. 1010.1 1992; EN 61010 Amendments 1,2.
Agency approvals	CE, CSA, TÜV (pending).
Mechanical and General
Size (L x W x D)	173 x 86 x 38 mm.
Weight	400 g.
Batteries	3 AA batteries; typical 1000-hour life.
