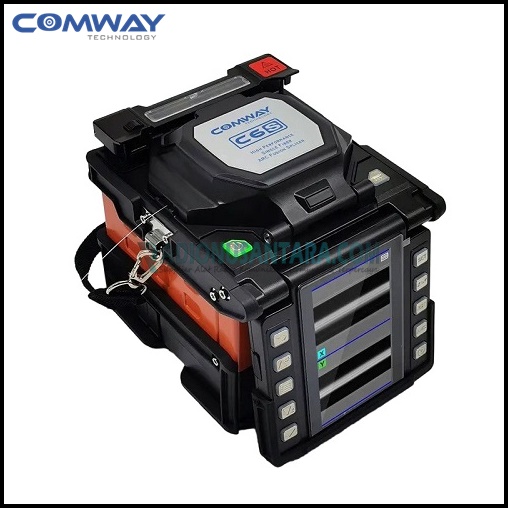

COMWAY C6S 2-in-1 Fiber Endface Melter & Fusion Splicer
The COMWAY C6S 2-in-1 Fiber Endface Melter & Fusion Splicer offers a revolutionary approach to fiber optic splicing by integrating endface melting and fusion splicing into one compact unit. This combination ensures superior splice quality and operational efficiency, making it an ideal choice for telecommunications, data centers, and network maintenance. Below, we explore the features and benefits of the COMWAY C6S, showcasing its capabilities in the ever-demanding field of fiber optics.
Features
- Remote Locker Anti-Theft
- Integrated GPU Chip
- Ultra-Low Loss
- Super Battery
- ID Electrodes 5000 Cores
- Tension 1.96 – 2.25N
- GPS (option)
Specifications
Size & Weight | D 156 x W 135 x H 149 (mm), 2.0kg (2.2kg with battery) |
Fiber Alignment | High Precision PAS Alignment |
Fiber Type | SM (ITU-T G.652), MM (ITU-TG.651), DS (ITU-TG.653), NZ/NZDS (ITU-TG.655), BI (ITU-TGG.657) |
Splice Mode | Single fiber |
Fiber Diameter | Cladding 80 – 150µm, Coating 100 – 3000µm |
Cleave Length | 250µ cladding diameter 8 – 16mm, over 250µm cladding diameter 16mm |
Splicing Programs | Max. 100 |
Splicing Time | 5 sec. [SM Fast] program, 15 sec. [SM G652] program |
Heating Programs | Max. 30 |
Heating Time | Adjustable, 8 sec. with micro sleeves, 12 sec. with slim 60mm and 40mm sleeves |
Splice Protector | 10 – 60mm |
Splice Image Capture | Max. 800 |
Splice Data Storage | Max. 20000 |
Splice Loss | SM : 0.02dB, MM : 0.01dB, DS : 0.04dB, NZ/NZS : 0.04dB, BI : 0.02dB |
Return Loss | >>60dB |
Loss Estimation | Provided |
Operation Condition | Altitude 0 – 5000m, Humidity 0 – 95%, Temperature -20 – +50°C, Wind Velocity up to 15m/s |
Storage Condition | Humidity 0 – 95%, Temperature -40 – +80°C, (Battery -20 – +40°) |
Tension | 1.96 – 2.25N |
Fiber View | 4.3 inch high-light color screen |
Fiber Magnification | 300x for X or Y single axis view, 750x for both X & Y dual axis view (zoom up) |
Port | High speed USB |
Electrode Life | 5000 ARC discharges |
Power Supply | AC 100 – 240V, 50/60Hz |
Battery Capacity | 5600 mAh High capacity battery, more than 350 times splicing & heating |
Tracking | GPS positioning and tracking system through inbuilt SIM card (option) |
Package | 1. Fusion Splicer C6S 2. Quick Start Guide 3. Stripper (CS-02-B) 4. Drop Cable Stripper 5. High Precision Clever (C109) 6. Carrying Case 7. High Capacity Battery (BAT-04) 8. AC Adapter (ADC-02) 9. Extra Electrodes (CE-03) 10. Cooling Tray 11. USB Cable (USBC-01) 12. DC Charging Cable (DCC-01) 13. AC Adapter Cable (ACC-01) 14. Hand Strap 15. Shoulder Strap 16. Alcohol Bottle |
