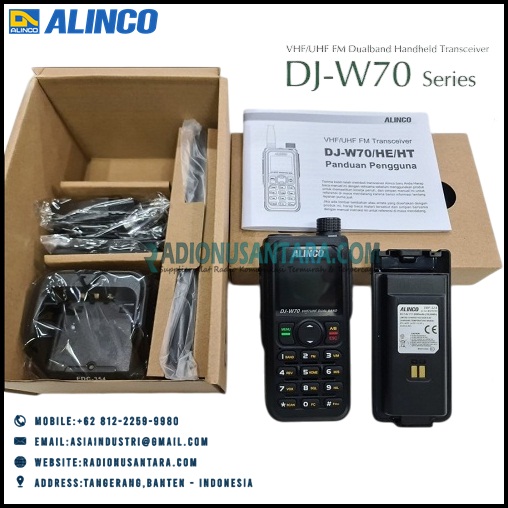

Alinco DJ-W70 VHF/UHF FM Dualband Handheld Transceiver
Full of advance of features, the DJ-W70 offers Professional-grade operation and powerful 8W (HE/HT)/10W (Land Mobile) max. output on both VHF/UHF. In a IP67 dust/water tight body, CTCSS, DTMF, DCS encode/decode and Tone burst tones are standard for repeater access or selective calling. Convenience features include intuitive operation with full-color TFT display, direct frequency input, 8-digit alpha-numeric channel labels and 200 memory channels that can each store operating parameters. In addition, a Li-Ion battery pack and a stand charger are standard, adding power and convenience.
The DJ-W70 is a powerful handheld transceiver at your command, at Alinco’s affordable price!
Features
- USB Type-C for Battery Charger and PC Connection
- AI Noise Canceller
- Semi-Duplex dualband, V/V-U/U Operation
- IP67 Compatible Dust/Water Proof
- 200 Memory Channels, Any Mix of VHF/UHF
- Internal VOX
- Frequency Counter Function
- Alphanumeric Channel Labels
- Direct Frequency Input from Keypad
- Variety of Scanning Modes
- Wide and Narrow FM TX/RX
- High Power Li-Ion Battery Pack, Stand Charger and Belt Clip Included
- FM Broadcast and AM BHF Aircraft Receiver (HE/HT Only)
- Inversion Scrambler (DJ-W70 Land Mobile Only)
Specifications
| General | |
| RX Frequency Coverage | All Models FM: 136 – 174MHz / 400 – 470MHz WFM: 76 – 108MHz / AM: 108 – 136MHz |
| TX Frequency Coverage | 136 – 174MHz / 400 – 470MHz |
| Modulation | F3E (16K03FE /11K0F3E) |
| Frequency Stability | ±2.5ppm |
| Power Supply Requirement | DC 7.4V |
| Current Drain Approx. | TX: Low 0.8A/Middle 1.7A/High 2.4A RX: 0.75mA Max. Audio/Squelch 70mA |
| Usable Temperature Range | -20 – +55°C (-4 – +131°F) |
| Channel Step | 2.5, 5, 6.25, 10, 12.5, 20, 25 and 50KHz |
| Dimensions (Projections not included/approx.) | 81.1 x 128 x 42mm (Included antenna/clip) |
| Weight | Approx. 310g (Includes of battery pack and antenna) |
| Transmitter | |
| Output Power (Approx.) | 10W / 8W / 1W |
| Frequency Deviation | ±8KHz/±2.5KHz |
| Spurious Emission | Less than -27dBm |
| Receiver | |
| Receiver System | Direct Conversion |
| Sensitivity (12dB SINAD) | Wide -12dBµ/Narrow |
| Adjacent Channel Selectivity | Wide More Than dB/Narrow More Than dB |
| Audio Output Power | 1W (10% distortion) |
| Standard Accessories | *Whip Antenna (EA-125) *Li-Ion Battery Pack (EBP-124, Li-Ion 7.4V 2600mAh) *Charger Stand (EDC-264) *USB Cable (EDS-90) *Belt Clip (EBC-71) |
