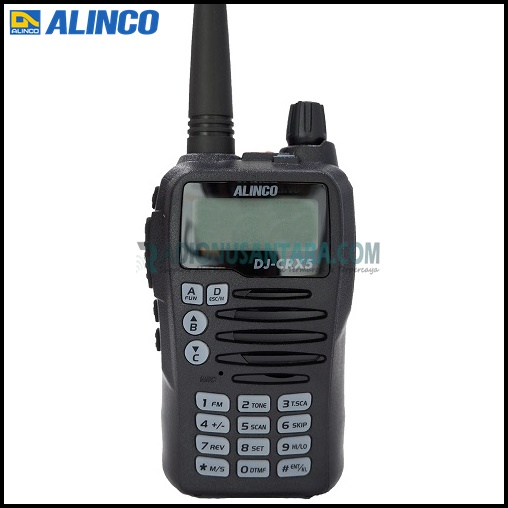

ALINCO DJ-CRX5 VHF/UHF FM Dualband Handheld Transceiver
Full of advanced features, the DJ-CRX5 offers Professional-grade operation and powerful 5W (VHF) / 4W (UHF) output. CTCSS, DTMF, DCS are standard, along with a variety of tone bursts for repeater access or selective calling. Convenience features include direct frequency input, alphanumeric channel labels and 200 memory channels that can each store operating parameters.
A Li-Ion battery pack and a stand charger are standard, adding power and convenience. The DJ-CRX5 looks simple, but remember, looks can be deceiving! The DJ-CRX5 places one of the world’s most advanced transceivers at your command, at ALINCO’s affordable price!
Features
- Large, dot-matrix, 3 color-selectable display and keypad
- Semi-Duplex dualband, V/V-U/U and FM broadcast receiver
- 200 memory channels, any mix of VHF/UHF
- Internal VOX
- Alphanumeric channel labels
- Direct frequency input from keypad
- Professional-grade signaling features
- Variety of scanning modes
- Wide and narrow FM TX/RX
- High power Li-Ion battery pack, stand charger and beltclip included
Specifications
GENERAL
RX Frequency Coverage | CRX5 : TX/RX : 136-174MHz / 400-480MHz Rx only : FM radio (76 – 107.95MHz) CRX5TW : TX/RX : 144-148MHz / 430-440MHz Rx only : FM radio (76 – 107.95MHz) CRX5KR : TX/RX : 136-174MHz / 400-480MHz Rx only : FM radio (76 – 107.95MHz) |
Modulation | F3E(16K0F3E / 11K0F3E / RX only WFM) |
Frequency Stability | ±2.5ppm |
Power Supply Requirement | 7.4V (Battery) |
Current Drain (Approx.) | 1500mA TX / 300mA receive at Max audio output 80mA squelched |
Usable Temperature Range | -20 – +50°C (-4 – 131°F) |
Channel Step | 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz |
Dimensions | 118 x 61 x 40 mm (with battery pack) |
Weight | approx.250g inclusive of battery pack and antenna |
TRANSMITTER
Output Power (Approx) | Approx. 5W(VHF) / 4W(UHF) / 2W / 1W |
Frequency Deviation | ±5kHz / ±2.5kHz |
Spurious Emission | – 60dB or less |
RECEIVER
Receiver System | Direct conversion |
Sensitivity (12dB SINAD Wide/Narrow) |
Wide -12dBu / Narrow -9dBu |
Selectivity | -6dB : Wide 12kHz /Narrow 10kHz or more -60dB :Wide 30kHz / Narrow 24kHz or less |
Audio Output Power | 1W (10% distortion) |
Specifications subject to change without notice or obligation.
Product intended for use by properly authorized operators.
*VFO(frequnecy) mode may not be available due to regulation. Please consult with your dealer before purchase.
Standard Accessories (A strap is included)
• Whip Antenna (EA-228) • Li-Ion Battery Pack (EBP-92, Li-Ion 7.4V 1800mAH)
• Rapid Charger Stand (EDC-202) • AC Adapter (CRX5 : EDC-190E (220V Linear), CRX5TW : EDC-191T (120V Switching), CRX5KR : EDC-210 (220V Switching)) • Belt Clip (EBC-41)
Standard accessories declared herein are our factory default and may vary at moment of sales depending on the market and Dealers’ sales policy.
