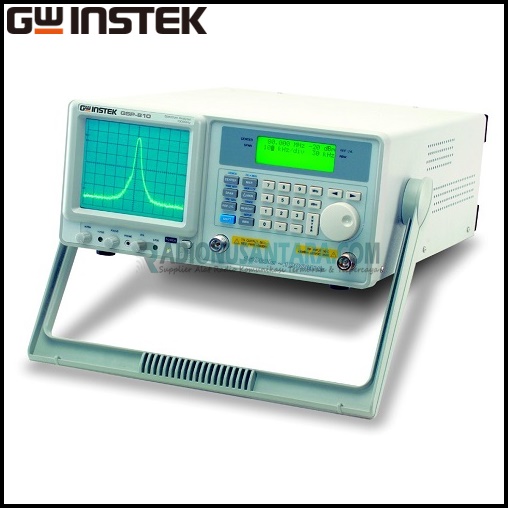

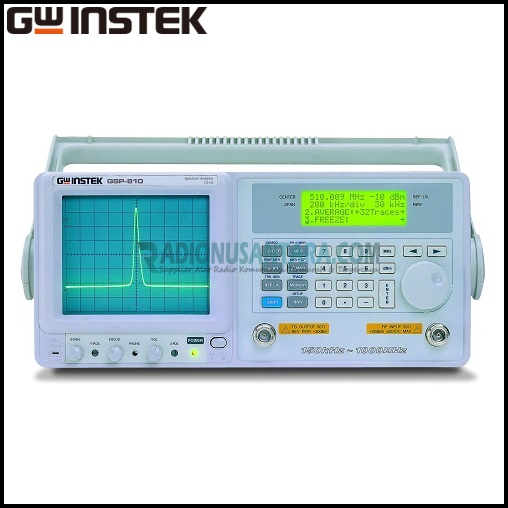

GW Instek GSP-810TG (Tracking Generator) 1GHz Spectrum Analyzer

The GSP-810 Spectrum Analyzer is a digitally synthesized, easy-to-use RF measurement instrument with a frequency range up to 1GHz. It uses a state-of-the-art design with a phased-locked RF system that combines measurement quality and performance with an affordable price. For flexibility and versatility, the GSP-810 has a number of options and optional accessories such as a factory installed tracking generator or the extensive probe kit options. The GSP-810 is also designed for rugged use with a 1-watt input protection. The small size and light weight of the GSP-810 make it easy to carry and stow anywhere.
The GSP-810 includes free software (Windows 2000/XP compatible) for displaying, saving and printing results via the standard RS232 interface. Optional software is also available for full PC remote control at additional cost.
All these functions and features make the GSP-810 an affordable, expandable, and high quality instrument suitable for a variety of applications.

SKU: GW-GSP810TG Kategori: Spectrum Analyzer Tag: analyzer, beli, cari, gsp-810, gsp-810tg, gw instek, harga, jual, murah, spectrum

Deskripsi
Ulasan (0)

Deskripsi

FEATURES

Frequency Range : 150kHz – 1GHz
Fully Digital Phase Locked Loop Technique Design
High Frequency Stability : ±10ppm
High Resolution of Span to Measure the More Zero, Detailed Signal : 2kHz – 100MHz/div
RBW : 3k, 30k, 220k, 4MHz
High Input Protection Level : +30dBm, ±25VDC
Reference Level Range : -30dBm – +20dBm
Good Noise Floor Performance: -95dBm @30kHz, -100dBm Typical @220kHz RBW
Two Markers for Absolute and Relative Measurement
Functions: Max. Hold, Average (2 – 32 Traces), Freeze, Peak Search, Marker to Center Functions
9 Memories of Save/Recall
RS-232C Interface and Software to get Trace from GSP-810 to PC
Options: Tracking Generator, Remote Control Power Meter, Software

SPECIFICATIONS

FREQUENCY
Frequency Range	150kHz – 1GHz
Aging Rate	±10ppm, 0 – 50°C, 2ppm/yr
Span Range	Zero, 2kHz – 100MHz/div in 1-2-5 sequence
Phase Noise	-77dBc/Hz @ 1GHz 30kHz offset
Frequency Resolution	1kHz C.F. entry, 40Hz sweep resolution at 2kHz/div
Frequency Display	6 1/2 digit setting
Frequency Control	Digital phase locked
RESOLUTION BANDWIDTH
RBW Range	3kHz, 30kHz, 220kHz, 4MHz
RBW Accuracy	15%
Video Bandwidth Range	1.6kHz/90kHz couple with RBW
AMPLITUDE
Measurement Range	-100dBm – +20dBm
Overload Protection	+30dBm continuous, 25VDC
Reference Level Range	-30dBm – +20dBm
Amplitude Display Range	75dB
Amplitude Accuracy	±1.5dB typical @ 0dBm, 80MHz
Frequency Flatness	±1.5dB over 100MHz, ±2.5dB typical over entire band/ ±3dB:150kHz – 10MHz
Amplitude Level Linearity	±1.5dB over 70dB
DYNAMIC RANGE
Average Noise Floor	-95dBm @30kHz RBW, -100dBm typical /-75dBm: 150kHz – 10MHz
Third Inter-Modulation	<-70dBc, @-40dBm input, 2tones, 2MHz apart/ <-45dBc:150kHz – 10MHz
Harmonic Distortion	<-40dBc, RF input < selected reference
Non-Harmonic Spurious	<-60dBc typical down from reference level, average, 5MHz/div
DISPLAY SYSTEM
Display Device	CRT Display, 8 x 10 graticule, 6-inch waveform screen
Display Device	LCD Display, 4 line x 20 character data screen
Display Function	Center Frequency Control, Bandwidth, Reference Level, Span Range, Amplitude
FUNCTIONS
Marker Mode	Absolute, relative, PK->marker, marker->center
Number of Markers	2
Marker Resolution	0.1dB, 1kHz
Marker Accuracy	0.1dB ±amplitude accuracy
Memory	10 memories of save/recall
Trace	Max. hold, average (2 – 32 traces), freeze (Hold)
Setup	Access parameters
Demodulator	WB FM, 120kHz deviation
	MB FM, 75kHz deviation
	NB FM, 30kHz deviation
	AM
	Outputs : Internal speaker, 3.5mm stereo jack, wired for mono operation
Calibrate Signal	80MHz, -30dBm
INTERFACE
RS-232C standard & remote display software (The software will be downloaded from GW Website.)
POWER SOURCE
AC 100V/120V/220V/230V 10%, 50/60Hz
DIMENSIONS & WEIGHT
310(W) x 150(H) x 455(D) mm, Approx. 8.5kg
ACCESSORIES
User Manual x 1, Power cord x 1
