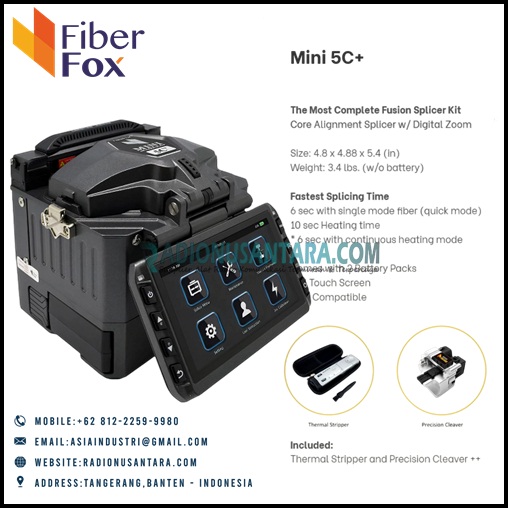

FiberFox MINI 5C+ Core Alignment Splicer
Features
- Core Alignment Splicing: Utilizes core alignment technology, which is generally considered more precise and results in lower splice loss compared to cladding alignment.
- Compact and Lightweight: Designed to be highly portable for field use.
- Fast Splicing and Heating: Offers quick splicing and heating times to improve workflow efficiency.
- User-Friendly Interface: Typically features an intuitive interface with a color LCD screen for easy operation and monitoring of the splicing process.
- Rugged and Durable: Built to withstand harsh field conditions, often with dustproof and shockproof designs.
- Long Battery Life: Equipped with a battery that supports a significant number of splice and heat cycles on a single charge.
- Touch Screen Control: Many models feature a touch screen for easier navigation and control.
- Automatic Arc Calibration: Automatically adjusts arc power based on environmental conditions.
- Data Management: Often includes data storage for splice results and the ability to download data for record-keeping and analysis.
- Universal Holders: Compatible with various types of fiber and connectors.
Specifications
| Splicing | Method | Core Alignment (DCID: Digitalized Core Image Detecting System) |
| Loss | SM (0.02dB) / MM (0.01dB) / DS (0.04dB) / NZDS (0.04dB) | |
| RL: >>60dB | ||
| Time | Quick: 6 Sec. / SM Auto: 8 Sec. | |
| Mode | 145 modes (Pre-set: 17 / User set-up: 128) | |
| Attenuation | Available rage: 0.1 – 20dB | |
| Applicable Fiber (Cable) | Fiber Type | SM (ITU-T G.652 & G.657) MM (ITU-T G.651) DS (ITU-T G.653) NZDS (ITU-T G.655) |
| Coating Diameter | 100 – 3,000µm | |
| Cladding Diameter | 80 – 150µm | |
| Cleaved Length | <250µm Coating: 5 – 16mm | |
| >250µm Coating: 8 – 16mm | ||
| Heating | Time | Ave. 10 Sec |
| Mode | 36 modes (Pre-set: 4 / User set-up: 32) | |
| Applicable Sleeve | 20 – 60mm | |
| Hardware | Connectivity (link to PC) | USB (5 Pin Mini-B) |
| Electrode Life Span | >5,500 arcs | |
| Data Storage | Splice record: 10,000 / Image: 2,000 | |
| Fiber Detecting | Dual CCD camera with LED emitting system | |
| Illumination | LED Spot Light | |
| Display | Color 4.3” LCD monitor, with Touch Screen (Tempered Glass) | |
| Battery | Li-ion 11.1V 5200mAh | |
| 300 cycles (Splicing & Heating) | ||
| Storage Temperature: -20 to 40°C | ||
| Power Supply | AC 100 – 240V input or DC 12.6V 1.8A | |
| Fiber Display (Magnification) |
X/Y (Single image): 320x | |
| X & Y (Dual image): 160x | ||
| Weight | 1.4kg (with battery: 1.8kg) | |
| Size | 124 x 123 x 138mm (L x W x H) | |
| Reliability | Wind Protection | Wind speed: 15m/s (max) |
| Operating Environment | Altitude: 0 – 5,000m Temperature: -10 to 50°C Humidity: 0 – 95% RH |
|
| Storage Condition | Temperature: -20 to 60°C Humidity: 0 – 95% RH |
|
| Pull Test | 1.96 – 2.25N (standard) | |
| Standard Package | MINI 5C+ | •MINI 5C+ •Cleaver Softcase •MINI 50GB+ Cleaver •Power Cord •Data Cable •AC Adapter •Car Cigar Cable •Cooling Tray •Spare Electrode •SOC Heater Block •SOC Holder •2 Battery Packs •Shoulder Strap •User Manual CD •USB Cable •Hand Carrying Case |
